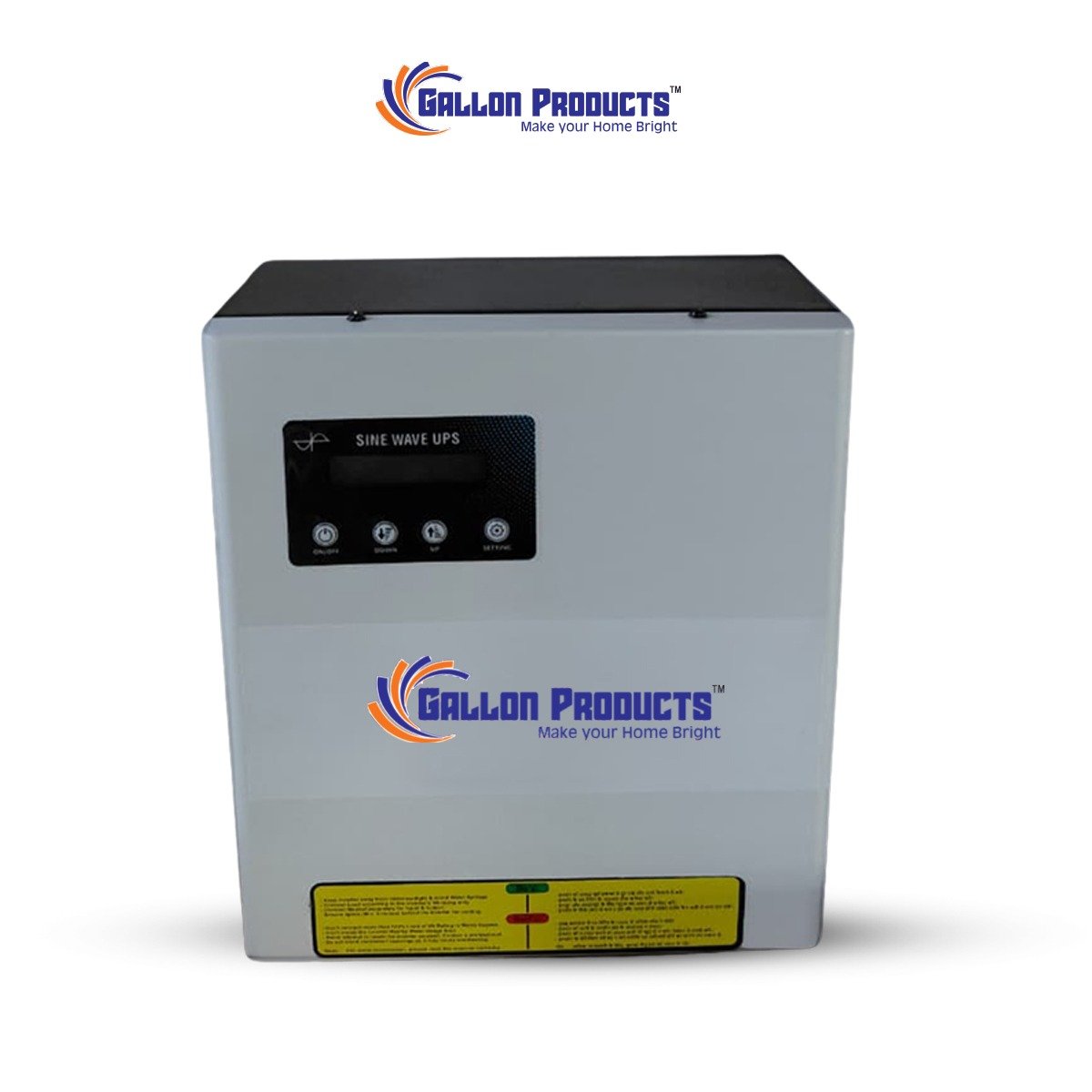

Gallon solar Sine Wave UPS / Inverter 3000VA

Gallon solar Sine Wave UPS / Inverter 3000VA (wall-mount /Table Top )

 Specifications

Type: Sine Wave UPS / Inverter

Technology: DSP based Pure Sine Wave

Electrical Specifications:  Capacity: (Common variants: 3000 VA / 24V / 36V

Input Voltage: 180V – 260V AC / Output Voltage: 230V ±10% AC / Output Waveform: Pure Sine Wave   / Frequency: 50 Hz / Switch Over Time: < 10 Ms / Efficiency: > 85%

Battery Details:  Supported Battery Type: Lead Acid / Tall Tubular / SMF

Battery Voltage:  for 3000VA, 24V / 36V (for higher capacities)

Battery Capacity Supported: 100AH to 220AH

Features: Microcontroller-based design for reliability / Low harmonic distortion for sensitive appliances Overload protection & short circuit protection / Deep discharge protection /

LCD / LED indicators for status

 Dimensions: Width (W): 400 mm / Height (H): 400 mm / Length/Depth (L): 200 mm

Weight: 9–14 kg (varies by model)

Safety: Reverse polarity protection / Over temperature shutdown / Automatic reset after fault

Warranty: 2 Year of manufacture
